Bubar Parlimen

Executive Summary

The provided VBA code contains a malicious macro that leverages Windows API functions like LoadLibrary, GetProcAddress, and CallWindowProc to execute encoded payloads. It defines functions to decode Base64-encoded data and dynamically loads additional binary components using the ADODB.Stream object. The payload appears embedded in the code as a long Base64 string and is processed during the Document_Open event, suggesting that it executes automatically upon opening the document. This behavior indicates it is likely intended for malicious purposes, such as downloading or executing additional payloads.

---

Case Details

Sample Information

Attribute	Value
File Name	bubarparlimen.docx
File Size	215 KB
File Type	Microsoft Office Word Document (DOCX)
MD5	afbe00e755a2cf963f0eedbb4e310198
SHA1	a55bd3f15ce743c9cda7bec05afe50b9aefa4683
SHA256	ab541df861c6045a17006969dac074a7d300c0a8edd0a5815c8b871b62ecdda7
File Name	RemoteLoad.dotm
File Size	24 KB
File Type	Microsoft Office Word Macro-Enabled Template (DOTM)
MD5	8114e5e15d4086843cf33e3fca7c945b
SHA1	5f7f0b1419448c5fe1a8051ac8cb2cf7b95a3ffa
SHA256	145daf50aefb7beec32556fd011e10c9eaa71e356649edfce4404409c1e8fa30

---

Case-Specific Requirements

Environment

• Operating System: Windows

Tools Used

• OLEDUMP
• OLEVBA

---

Static Analysis

Open the .docx as archive and go into word\_rels\settings.xml.rels.

Document of settings.xml.rels may be designed to load or use an external template from an online source which is the URL points to a file on GitHub. It could be indicative of the document attempting to fetch and execute content from that URL.

The file RemoteLoad.dotm was analyzed using oledump.py, revealing the presence of embedded VBA macros in the document. The macros are stored within word/vbaProject.bin, indicating potential malicious functionality. Stream list:

• A1 (PROJECT): Metadata related to the VBA project.
• A2 (PROJECTwm): Additional metadata for project window manager settings.
• A3 (VBA/ThisDocument): Contains the main VBA macro script associated with the document’s behavior.
• A4 (VBA/_VBA_PROJECT): Internal configuration or references for the VBA project.
• A5 (VBA/dir): Directory structure of the VBA project, including references to other streams or modules.

The presence of the M flag for A3 (VBA/ThisDocument) indicates that the macro is active and likely contains the primary logic for executing malicious tasks, such as downloading and executing files as observed in the sample behavior. The structure suggests a well-defined VBA project crafted for automation

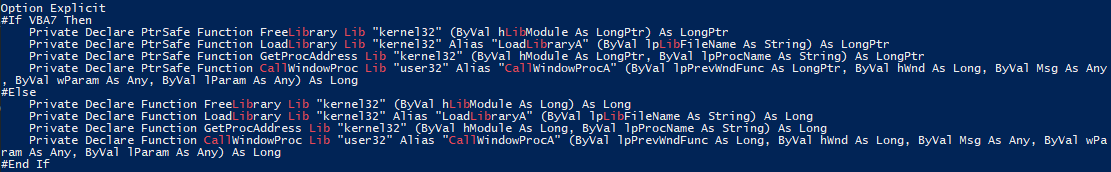

1. Windows API Declarations:
   • FreeLibrary, LoadLibrary, GetProcAddress, and CallWindowProc functions are declared using kernel32 and user32 libraries for dynamic library manipulation.

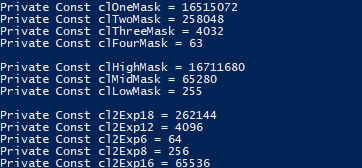

1. Constants for Bit Masks and Powers:
   • Several constants like clOneMask, clHighMask, cl2Exp6, etc., are defined to manipulate and extract specific bits.

1. MyDecode and AES Function:
   • Replaces custom encoded placeholders (“uPCgt131”, “Jc34DSga”) with Base64 padding characters (== and =), then decodes using AES. Converts Base64-encoded strings to their decoded form using byte-level operations and bit masks.

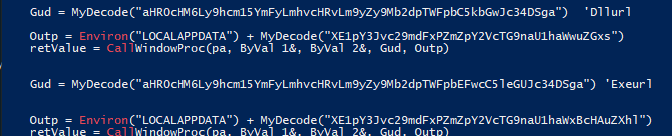

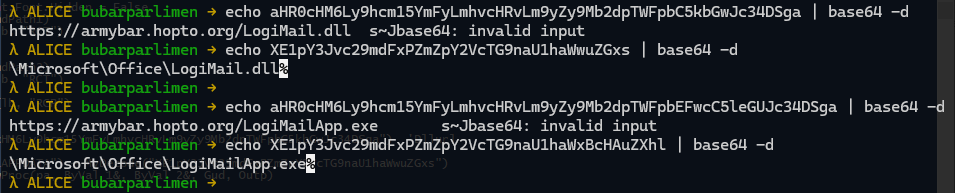

Additional decoded:

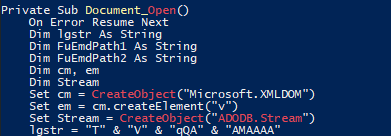

1. Document_Open Event:
   • Executes automatically when the document is opened and then constructs a large encoded string (lgstr), decodes it, and saves it to a temporary file in the PUBLIC directory.

1. Use of External Libraries and Objects:
   • Uses Microsoft.XMLDOM and ADODB.Stream to handle encoded data and save it as a file.

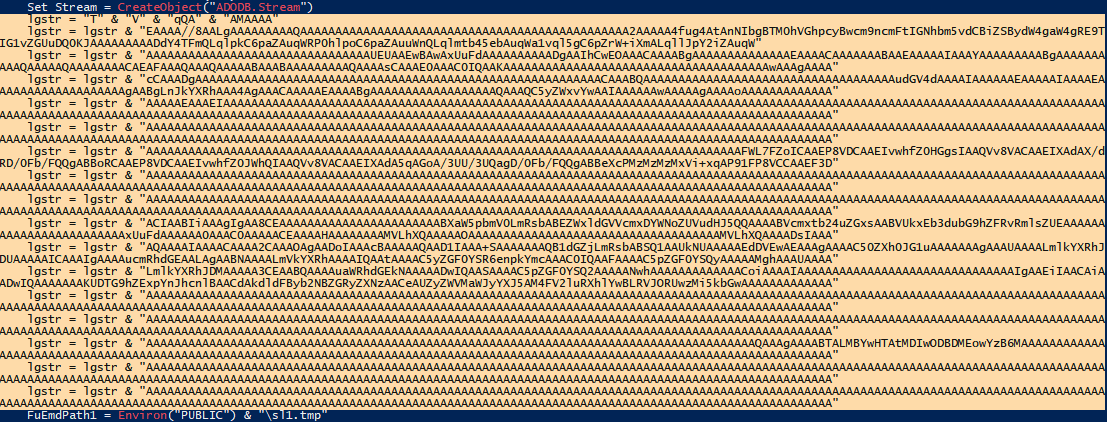

1. Encoded Payload:
   • Large Base64 string (lgstr) is embedded, representing a binary file or script likely executed later.

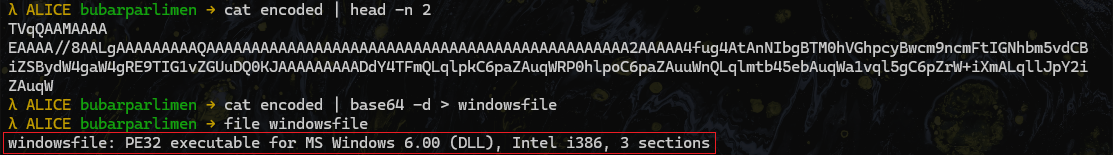

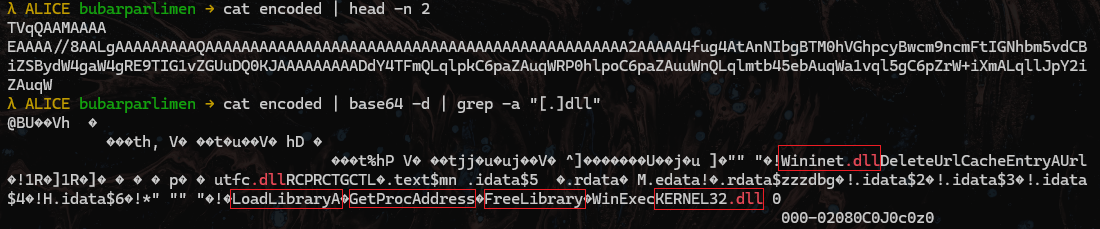

• The extracted decode file from base64 found that it was PE32 executable for MS Windows of dll program.

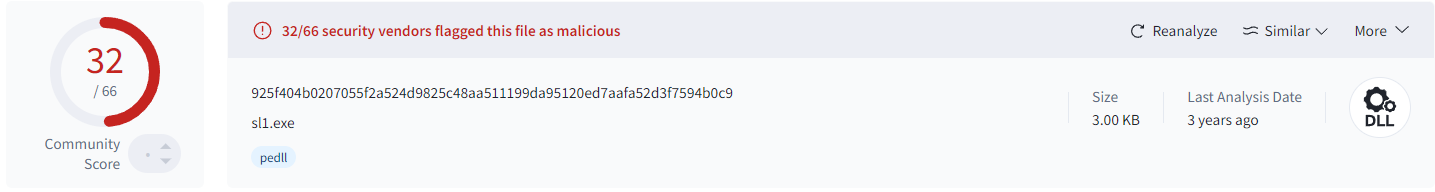

• Checking the hash to Virustotal

1. File Write Operations:
   • The decoded content from lgstr is saved to a temporary file sl1.tmp and sl2.tmp.

---

Indicators of Compromise (IOCs)

IOC	Type
Wininet.dll	Executable File Name
Urlmon.dll	Executable File Name
utfc.dll	Executable File Name
KERNEL32.dll	Executable File Name
UrlDownloadToFile.dll	Executable File Name
LogiMail.dll	Executable File Name
LogiMailApp.exe	Executable File Name
\Microsoft\Office\LogiMail.dll	Registry
\Microsoft\Office\LogiMailApp.exe	Registry
hxxps[://]armybar[.]hopto[.]org/LogiMail[.]dll	URL
hxxps[://]armybar[.]hopto[.]org/LogiMailApp[.]exe	URL
925f404b0207055f2a524d9825c48aa511199da95120ed7aafa52d3f7594b0c9	Hash (SHA256)
ccbdda7217ba439dfb6bbc6c3bd594f8	Hash (MD5)
610919bfae5a4e5fa7ca150a17c6f03659a43fd8	Hash (SHA1)

---

Additional Notes

• Domain Name of the C2 Infrastructure:
  hxxps[://]armybar[.]hopto[.]org/

• Auto-Execution Function:
  Document_Open

• Base64-Decoded Path for Malicious DLL:
  LogiMail.dll

• URL for Downloading Malicious Executable:
  hxxps[://]armybar[.]hopto[.]org/LogiMailApp[.]exe

• Function Used to Execute the Downloaded File:
  CreateObject

• Function Used to Decode Base64 Strings:
  AES
