Raspberry Robin DLL Loader

Executive Summary

The supplied file is a 32-bit Windows DLL attributable to Raspberry Robin. Attribution is high confidence because its exact SHA-256 hash appears in Zscaler ThreatLabz’s published indicator table as a Raspberry Robin DLL. Static inspection indicates that this artifact is a packed or encrypted loader stage rather than a transparently readable final payload.

The DLL contains two very large, high-entropy data sections, sparse imported functionality, runtime API/string reconstruction, anti-debug handling, and code that allocates executable memory, rebuilds a Portable Executable (PE) image in memory, and transfers control through a computed target. These characteristics are consistent with a staged malware loader intended to obstruct static inspection and reveal its effective payload only during runtime.

No separately extractable secondary dropper, valid nested PE file, or valid embedded archive was recovered from the DLL at rest. The file does, however, include loader code capable of producing or transferring execution to an opaque in-memory stage. A controlled unpacking/detonation phase would be required to recover that stage for independent hashing and full component analysis.

For injection technique classification, the local DLL demonstrates in-memory PE reconstruction/manual loading into executable memory. Zscaler ThreatLabz reports that newer Raspberry Robin core payloads perform early-bird Asynchronous Procedure Call (APC) process injection using NtQueueApcThreadEx2, with candidate target processes including cleanmgr.exe, rundll32.exe, and dllhost.exe.

Scope and Methodology

Static examination included:

• Cryptographic hashing and PE file identification.
• PE header, section, import, export, debug-path, and data-directory review.
• Entropy measurement of raw sections.
• Printable string review and targeted indicator searches.
• Static disassembly of the entry path, anti-debug routines, API resolution logic, and in-memory PE construction logic.
• Validation of candidate embedded MZ/PE and archive signatures in raw bytes.
• Correlation with primary public reporting from Zscaler ThreatLabz and technique definitions from MITRE ATT&CK.

Sample Identification

Attribute	Value
Original filename	BAWhi.SkinEditor.Design.dll
File size	5,353,472 bytes
File format	PE32 Windows DLL, GUI subsystem
Architecture	Intel x86 / 32-bit
Preferred image base	0x10000000
Linker timestamp	2025-01-24 08:45:59 UTC (untrusted PE metadata)
Digital signature	Not signed
Debug/PDB path	o:\dir_for_builds\bldObjDir_67939ff4_616ca95a0_e24df0062\loader.cpp.bc.obj.pdb
MD5	4ef38f237262847fd20783186b1579e0
SHA-1	30f8eca869263bcf4c76acd013fd126039ff8c4a
SHA-256	05c6f53118d363ee80989ef37cad85ee1c35b0e22d5dcebd8a6d6a396a94cb65

The submitted filename is identical to the sample’s SHA-256 hash followed by the .dll extension.

Attribution Assessment

Zscaler ThreatLabz published the exact SHA-256 value of the submitted DLL in its August 2025 reporting on Raspberry Robin, labelling the indicator as a Raspberry Robin DLL. This exact-hash match provides a stronger attribution basis than behavioral similarity alone.

Local static observations are also compatible with the attributed family:

• The DLL presents as a loader with limited clear-text imports while reconstructing capabilities at runtime.
• Large opaque/high-entropy regions obstruct extraction of a clear-text payload.
• Code reconstructs and transfers execution to a PE image in memory.
• Anti-analysis and dynamic API-resolution behavior matches the loader-oriented design reported for Raspberry Robin.

Assessment: The supplied DLL is a malicious Raspberry Robin loader-stage artifact with high confidence.

PE Structure and Packing Assessment

Section Analysis

Section	Raw Offset	Raw Size	Entropy	Permissions	Assessment
.text	0x001000	24,576	3.8642	Read / Execute	Loader code and obfuscated entry path
.rdata	0x007000	4,096	2.1903	Read	Imports, exports, strings, constants
.data	0x008000	53,248	4.0355	Read / Write	Runtime data and encoded resolution material
hK6	0x015000	184,320	7.9732	Read / Write	High-entropy opaque data; consistent with encrypted/packed material or decoy content
.CRT	0x042000	5,042,176	7.9999	Read	Near-maximum entropy; dominates the file and is consistent with encrypted/packed material or filler
.rsrc	0x511000	4,096	1.0206	Read	Resource data
.reloc	0x512000	36,864	4.4607	Read	Base relocation data

Overall raw-file entropy is approximately 7.9848, driven by the opaque hK6 and .CRT sections. Their size and entropy strongly indicate that meaningful payload material, configuration, or masking data is unavailable in readable form at rest.

Notable PE Properties

Property	Observation	Significance
DEP/NX compatibility	Not enabled as reported by PE inspection	Executable-memory behavior is less constrained by image policy
Relocations	Reported absent in image metadata, although a .reloc section is present	Inconsistent metadata is typical of unusual or deliberately shaped loaders
Overlay	No overlay detected	Opaque content is carried within PE sections rather than appended data
TLS callbacks	None identified	Entry behavior is concentrated in normal execution paths
Export surface	Single unusual exported name forwarding to kernel32.WriteFile	Provides a benign-looking proxy/forwarder facade

Export Observation

The DLL exports a single unusual name, QbetdeiolralhwIe, under the library identity dyayt27.dll. Its export target is the forwarder string kernel32.WriteFile. The export surface does not explain the malicious behavior; the effective loader logic is present in internal execution paths.

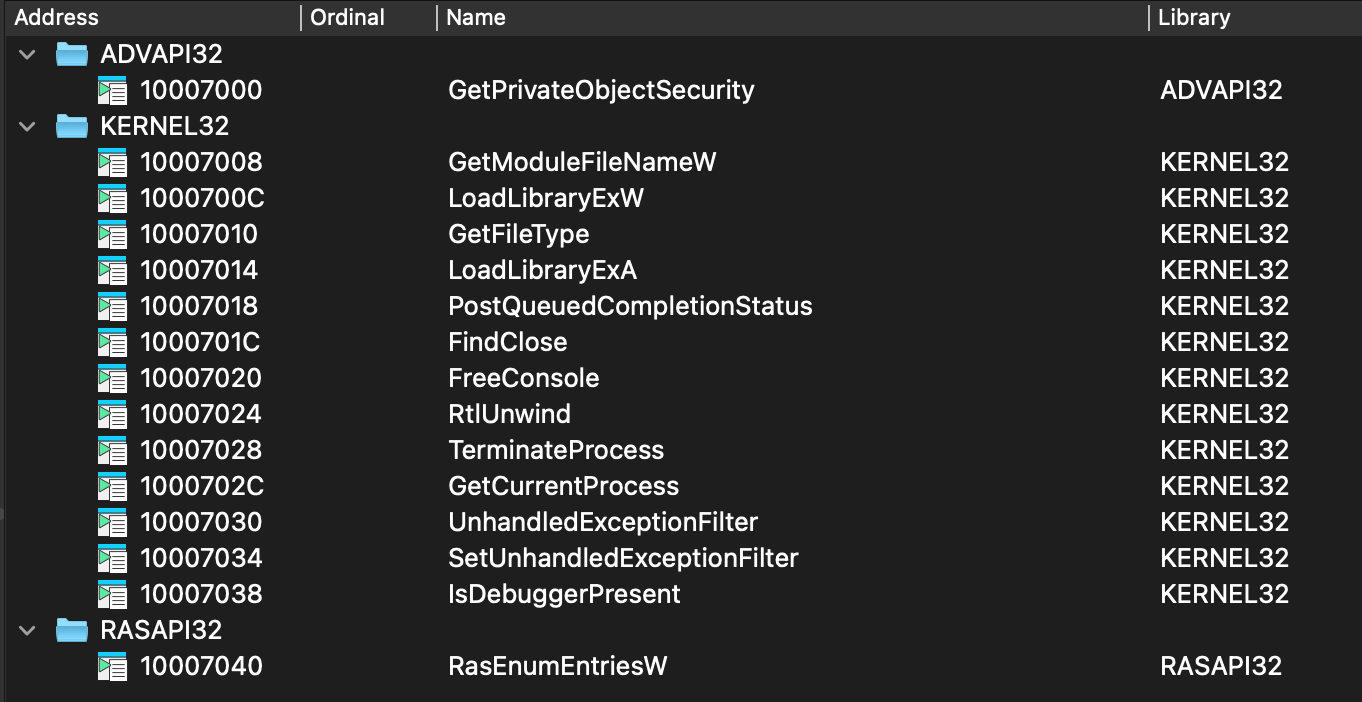

Imported Functionality

Only a small import set is visible statically:

Library	Imports Observed
ADVAPI32.dll	GetPrivateObjectSecurity
KERNEL32.dll	GetModuleFileNameW, LoadLibraryExW, GetFileType, LoadLibraryExA, PostQueuedCompletionStatus, FindClose, FreeConsole, RtlUnwind, TerminateProcess, GetCurrentProcess, UnhandledExceptionFilter, SetUnhandledExceptionFilter, IsDebuggerPresent
RASAPI32.dll	RasEnumEntriesW

The visible import table does not contain typical payload allocation or remote-injection APIs such as VirtualAllocEx, WriteProcessMemory, CreateRemoteThread, or NtQueueApcThread. This does not indicate their absence from runtime behavior: static disassembly shows API material being decoded/resolved during execution, which deliberately prevents meaningful functionality from being represented by the ordinary import table.

Static Behavioral Analysis

Obfuscated Initial Execution

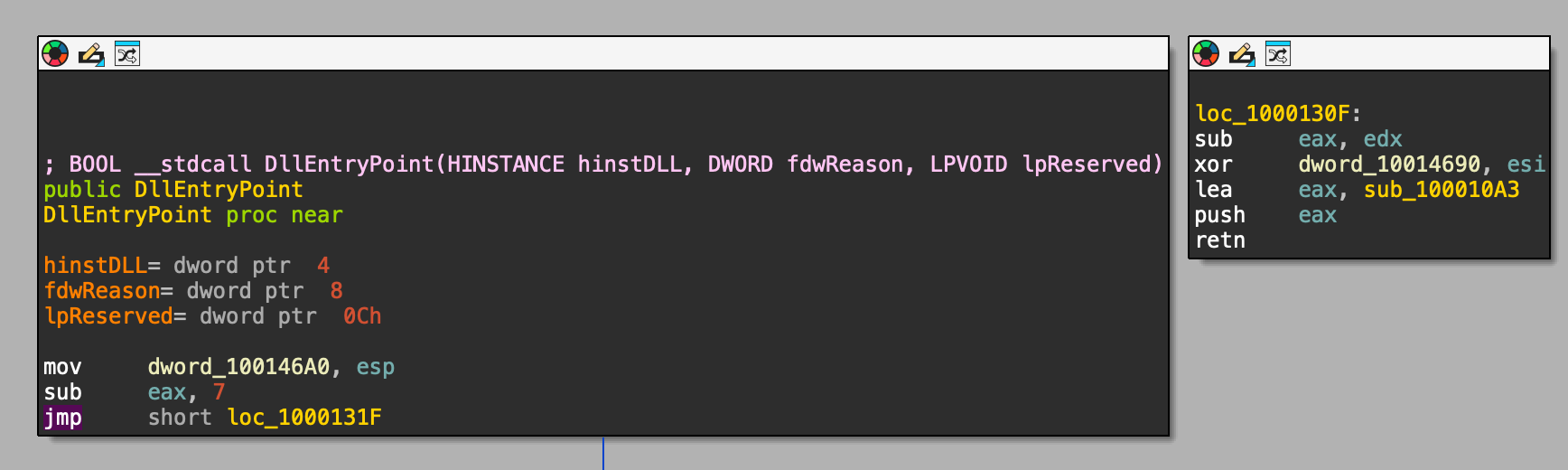

The DLL entry point is located at virtual address 0x10001304. The initial code contains extensive low-value repeated instructions and then reaches an indirect-looking trampoline:

0x10001340  call fcn.1000130f

fcn.1000130f:
0x10001317  lea eax, [0x100010a3]
0x1000131d  push eax
0x1000131e  ret

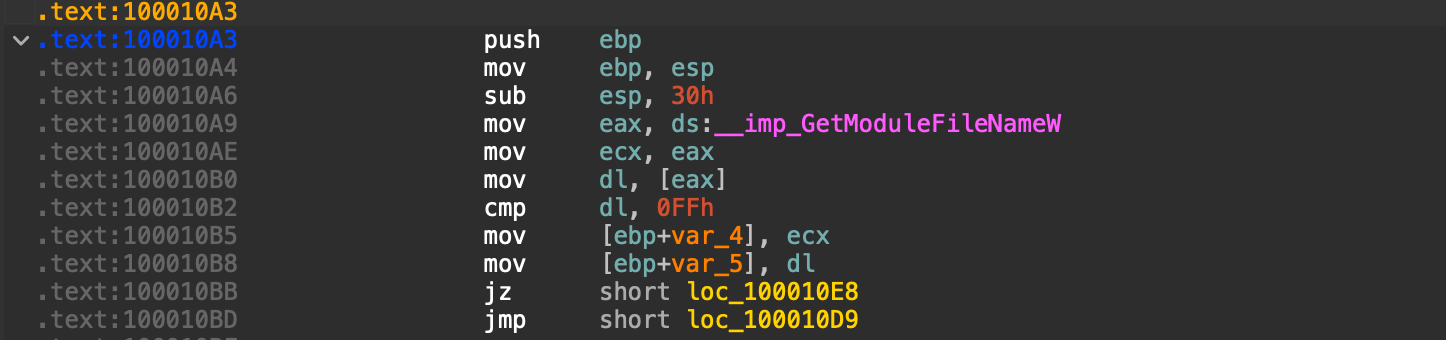

This push/ret transfer enters hidden loader logic at 0x100010a3 while making straightforward control-flow recovery less obvious.

Loader and Anti-Analysis Behavior

The recovered loader path references the strings SElf.eXe and UTF-16 TEstapp.exe, and invokes LoadLibraryExA/LoadLibraryExW around these constructed names. The naming and unusual case pattern are consistent with decoy or environment-oriented loading logic rather than normal application functionality.

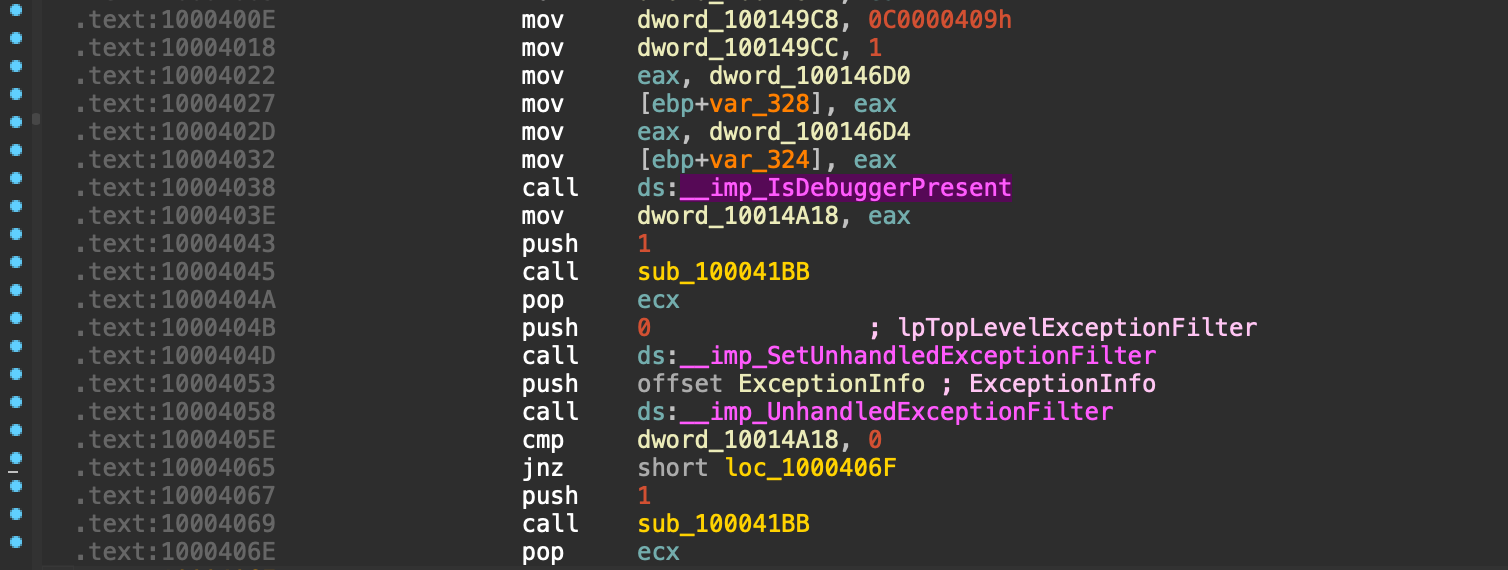

Additional code invokes:

• IsDebuggerPresent.
• SetUnhandledExceptionFilter and UnhandledExceptionFilter.
• TerminateProcess using the current process handle.
• Other unusual imported calls including PostQueuedCompletionStatus, GetPrivateObjectSecurity, and FreeConsole.

The IsDebuggerPresent and exception/termination path provides direct evidence of anti-debug behavior. Some of the remaining unusual API use may form anti-emulation, decoy, or loader housekeeping logic; no dynamic validation was performed.

In-Memory PE Reconstruction

Static disassembly establishes a memory-resident payload transfer sequence:

• A routine scans memory for MZ (0x5A4D) and then verifies a PE (0x00004550) signature through the e_lfanew header field.
• Another routine reconstructs an executable image in allocated memory, explicitly writing an MZ header, an e_lfanew offset of 0xC0, and a PE signature.
• Encoded string/API material is transformed at runtime and passed to a resolver.
• A resolved function is invoked with arguments equivalent to:

allocation_function(NULL, 0x6000, 0x1000, 0x40);

The arguments strongly match VirtualAlloc(NULL, 0x6000, MEM_COMMIT, PAGE_EXECUTE_READWRITE), although the API name is dynamically resolved rather than directly imported.

• Control is finally passed through a computed function address (call eax) after the in-memory image preparation.

Direct static conclusion: The submitted DLL implements an obfuscated, in-process loader that builds or maps a PE-compatible stage into executable memory and transfers control to it.

Other Dropper or Payload Determination

The supplied file was reviewed for additional statically recoverable components.

Candidate Component	Result	Assessment
Second valid PE file embedded in raw DLL bytes	Not recovered	Numerous random MZ byte pairs occur in high-entropy content, but only the outer DLL validates as a PE structure
Embedded ZIP archive	Not identified	No ZIP signature located
Embedded CAB archive	Not identified	No CAB signature located
Embedded 7-Zip archive	Not identified	No 7-Zip signature located
Candidate GZIP bytes	Validation failed	Byte match does not decompress as valid GZIP and is consistent with random high-entropy data
Runtime-decoded/in-memory stage	Evidenced by loader code, not statically extracted	Requires controlled runtime unpacking or emulation for independent analysis

Determination

No separate, readable secondary dropper can be extracted and analyzed as an independent file from the submitted DLL using static inspection alone. The DLL itself should be treated as a loader/dropper-stage component because it prepares an opaque in-memory execution stage.

ThreatLabz family research reports that Raspberry Robin payload structures may contain decoy and core components and may retrieve later payloads. Those family capabilities should not be interpreted as proof that an additional clear-text dropper is physically present in this specific file without successful unpacking.

Injection Technique Assessment

Behavior Demonstrated by This Sample

The submitted wrapper directly demonstrates in-process in-memory PE reconstruction/manual loading:

• Runtime resolution of sensitive functionality.
• Likely VirtualAlloc allocation of read/write/execute memory.
• PE header reconstruction in the allocated region.
• Computed transfer of execution into the reconstructed stage.

This is consistent with reflective-style/manual PE loading. Static analysis of the wrapper does not establish a remote victim process, a remote memory write, or an APC queue operation in this file’s readable outer-layer code.

Family-Documented Injection Behavior

Zscaler ThreatLabz documents the following Raspberry Robin core behavior:

Variant Context	Technique	Documented Targets / Mechanism	Confidence for Supplied Outer DLL
Newer Raspberry Robin core versions	Early-bird APC process injection	Targets may include cleanmgr.exe, rundll32.exe, or dllhost.exe; execution is scheduled using NtQueueApcThread	Family-attributed; not independently visible before unpacking this DLL
Older Raspberry Robin versions	Process hollowing	Suspended rundll32.exe or dllhost.exe is mapped with malicious content and resumed	Historical family context; not directly confirmed here

Injection Conclusion

The most precise answer is:

1. Directly observed in the submitted DLL: executable-memory allocation and in-memory PE reconstruction followed by execution transfer.
2. Reported for the associated Raspberry Robin core stage: early-bird APC injection using NtQueueApcThread in newer variants.
3. Reported historically for older Raspberry Robin stages: process hollowing.

Indicators of Compromise and Hunt Leads

File Indicators

Indicator Type	Value
SHA-256	05c6f53118d363ee80989ef37cad85ee1c35b0e22d5dcebd8a6d6a396a94cb65
SHA-1	30f8eca869263bcf4c76acd013fd126039ff8c4a
MD5	4ef38f237262847fd20783186b1579e0
File type	32-bit Windows DLL
Public classification	Raspberry Robin DLL

Static String and Metadata Leads

Type	Value	Relevance
Debug path	o:\dir_for_builds\bldObjDir_67939ff4_616ca95a0_e24df0062\loader.cpp.bc.obj.pdb	Build artifact / clustering lead
Export library identity	dyayt27.dll	Unusual loader metadata
Export name	QbetdeiolralhwIe	Unique forwarding-export lead
Export forwarder	kernel32.WriteFile	Benign-looking forwarding facade
ASCII string	SElf.eXe	Loader-path string
UTF-16 string	TEstapp.exe	Loader-path string

MITRE ATT&CK Mapping

Technique	ID	Basis	Confidence
Obfuscated Files or Information	T1027	Near-maximum entropy sections, encoded/runtime-resolved material, and obfuscated control flow	High, locally evidenced
Debugger Evasion	T1622	IsDebuggerPresent and exception/termination handling in executable code	High, locally evidenced
Process Injection: Asynchronous Procedure Call	T1055.004	ThreatLabz reports newer Raspberry Robin core performs early-bird APC injection using NtQueueApcThread	Family-attributed; requires unpacking to verify for this instance
Process Injection: Process Hollowing	T1055.012	ThreatLabz reports this technique in older Raspberry Robin versions	Historical family context only

The local in-memory PE mapping behavior is recorded as a loader capability rather than asserted as a specific cross-process ATT&CK injection sub-technique, because no remote target-process interaction was statically established in the submitted outer layer.

Defensive Considerations

• Treat the sample hash and matching artifacts as confirmed malicious indicators.
• Quarantine hosts or removable media containing this DLL pending incident-response review.
• Hunt for execution chains involving anomalous DLL loading followed by memory allocations marked executable and PE-like image reconstruction in private memory.
• Where Raspberry Robin activity is suspected, investigate anomalous suspended or early-stage execution involving cleanmgr.exe, rundll32.exe, and dllhost.exe, with particular attention to APC-queue and memory-allocation telemetry.
• Retain any additional files, execution telemetry, or memory images from affected systems to support unpacking and payload recovery.

Conclusion

The supplied DLL is a high-confidence Raspberry Robin loader artifact and should be handled as malicious. Its static structure and disassembly demonstrate an intentionally concealed loader that reconstructs and executes a PE stage in memory. No separate clear-text dropper was statically recovered from the file. For the wider Raspberry Robin operation, published research identifies early-bird APC injection using NtQueueApcThread in newer core variants, with process hollowing documented in older versions; extracting this sample’s runtime stage would be necessary to verify which core behavior it carries.

Sources

References

1. Zscaler ThreatLabz, Tracking Updates to Raspberry Robin, 2025-08-06. Exact SHA-256 identification and newer-variant technical context: https://www.zscaler.com/fr/blogs/security-research/tracking-updates-raspberry-robin
2. Zscaler ThreatLabz, Unraveling Raspberry Robin’s Layers: Analyzing Its Obfuscation Techniques and Execution Methods, 2023-12-11. Loader structure and injection-method discussion: https://www.zscaler.com/fr/blogs/security-research/unraveling-raspberry-robin-s-layers-analyzing-obfuscation-techniques-and
3. MITRE ATT&CK, Process Injection: Asynchronous Procedure Call (T1055.004): https://attack.mitre.org/techniques/T1055/004/
4. MITRE ATT&CK, Process Injection: Process Hollowing (T1055.012): https://attack.mitre.org/techniques/T1055/012/
5. MITRE ATT&CK, Obfuscated Files or Information (T1027): https://attack.mitre.org/techniques/T1027/
6. MITRE ATT&CK, Debugger Evasion (T1622): https://attack.mitre.org/techniques/T1622/
